Name: Edgebanded Cabinet Doors
Brand: CabDoor

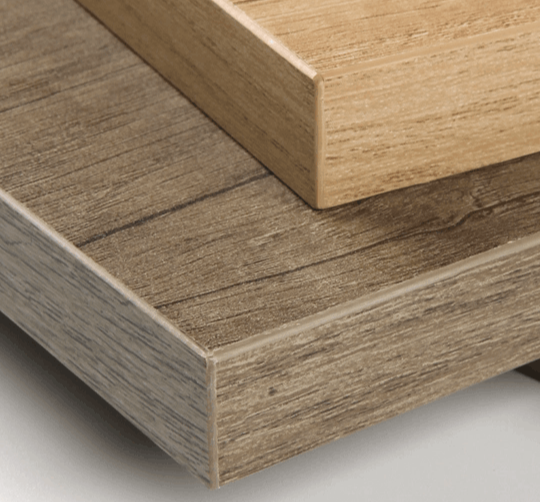

Close-up of wood-grain edgebanding on stacked cabinet panel edges

Edgebanded Cabinet Doors. Clean, Modern & Made to Spec.

One Door. A Lot of Possibilities.

For projects that call for a clean slab look, CabDoor's Edgebanded Series keeps things simple without limiting your options. Choose from melamines, textured and specialty finishes, natural or reconstituted wood veneers, and high-pressure laminates, then select the cut and edge treatment that fits the job. It's especially well suited to modern cabinetry, production kitchens, multi-family projects, and larger runs where repeatability and consistency matter.

Melamine & Specialty Finishes

Cleaf, Salt, Prism, and KML options in a wide range of textures and looks.

Wood Veneers

Natural wood veneers available ready for finishing or prefinished.

Reconstituted Wood Veneers

Consistent wood looks with distinctive patterns and environmentally conscious options.

High-Pressure Laminates

Wilsonart and Formica options for even more design flexibility.

Choose Your Cut

Traditional

Vertical

Horizontal

A fully custom Choice Cut option is also available. Specify your preferred cut with CabDoor's three-character ordering suffix when you place your order.

And We Don't Stop at the Door.

Edgebanded doors are rarely the whole order. CabDoor also builds the finished end panels, fillers, plant-on parts, and continuity strips that match, along with pre-finishing on parts as needed, so the rest of the cabinet looks like it came from the same shop as the doors.

We recognize that there are several ways to cut the panel when producing this product, and it's our hope that we provide you with the options that allow you to make the project your own.

Select from the 5 different options on these pages, and provide the "Cut Type" information when placing your order. To do this, when selecting door and drawer front items, include the 3 character suffix to designate your choice of cut. For example- #481-CCV and #981-CCV designate edge-taped doors and drawer fronts in the "Choice Cut- Vertical" approach.

Standard Cutting Options

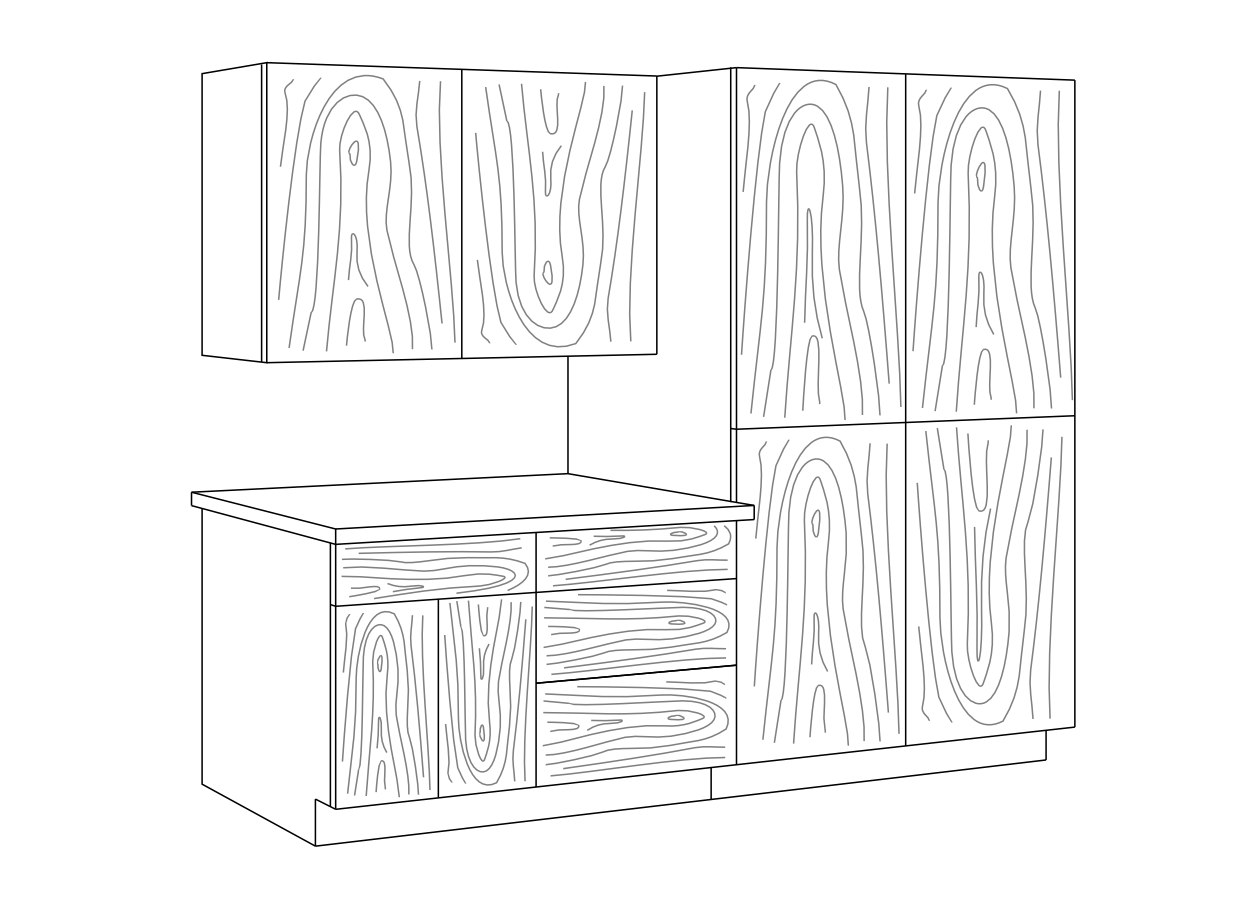

Standard Cut- Traditional (SCT)

Cutting Approach: Random from Sheet
Grain Direction:
Doors- Vertical
DFs- Horizontal
How to Order (Tape)- #481-SCT and #981-SCT
How to Order (3mm)- #491-SCT and #991-SCT

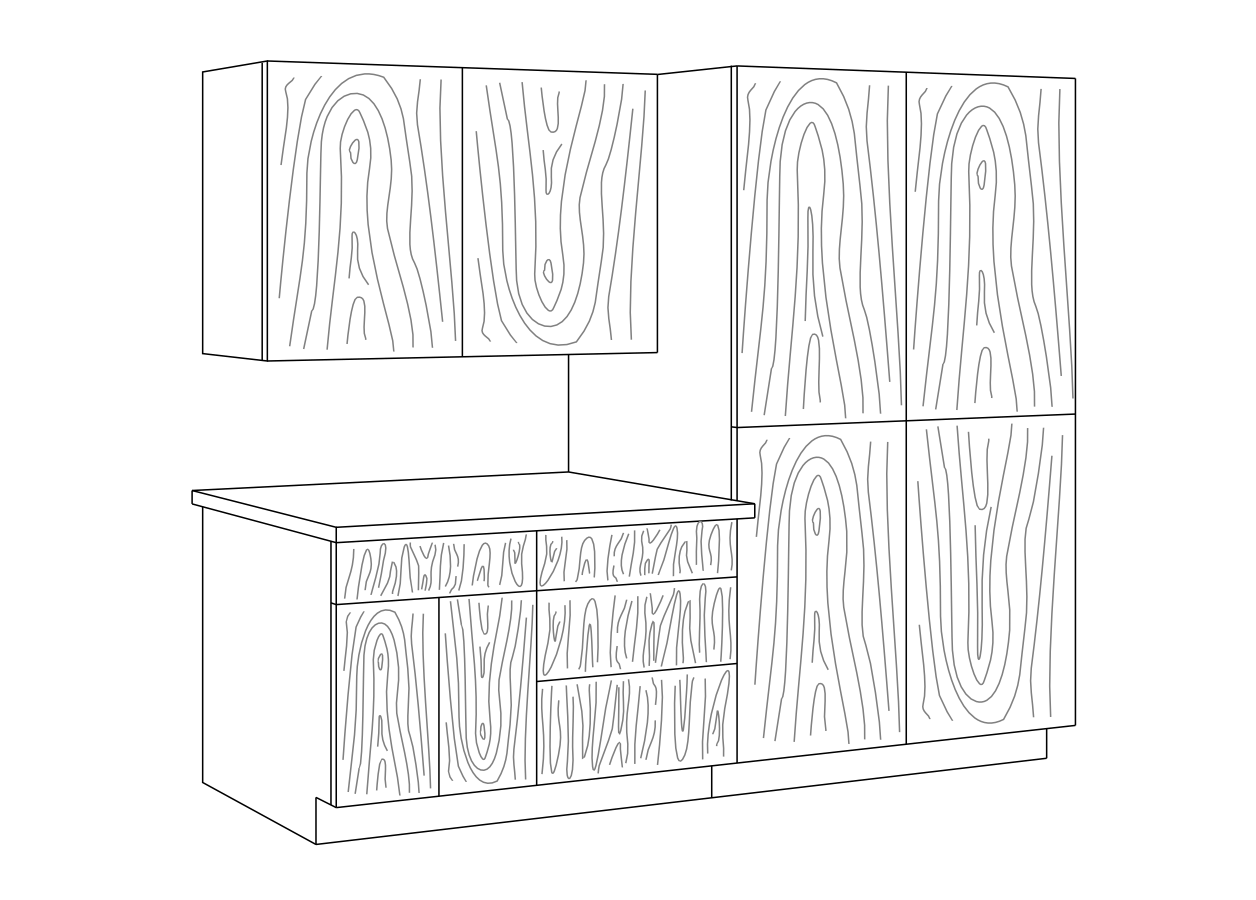

Standard Cut- Vertical (SCV)

Cutting Approach: Random from Sheet
Grain Direction:
Doors- Vertical
DFs- Horizontal
How to Order (Tape)- #481-SCV and #981-SCV
How to Order (3mm)- #491-SCV and #991-SCV

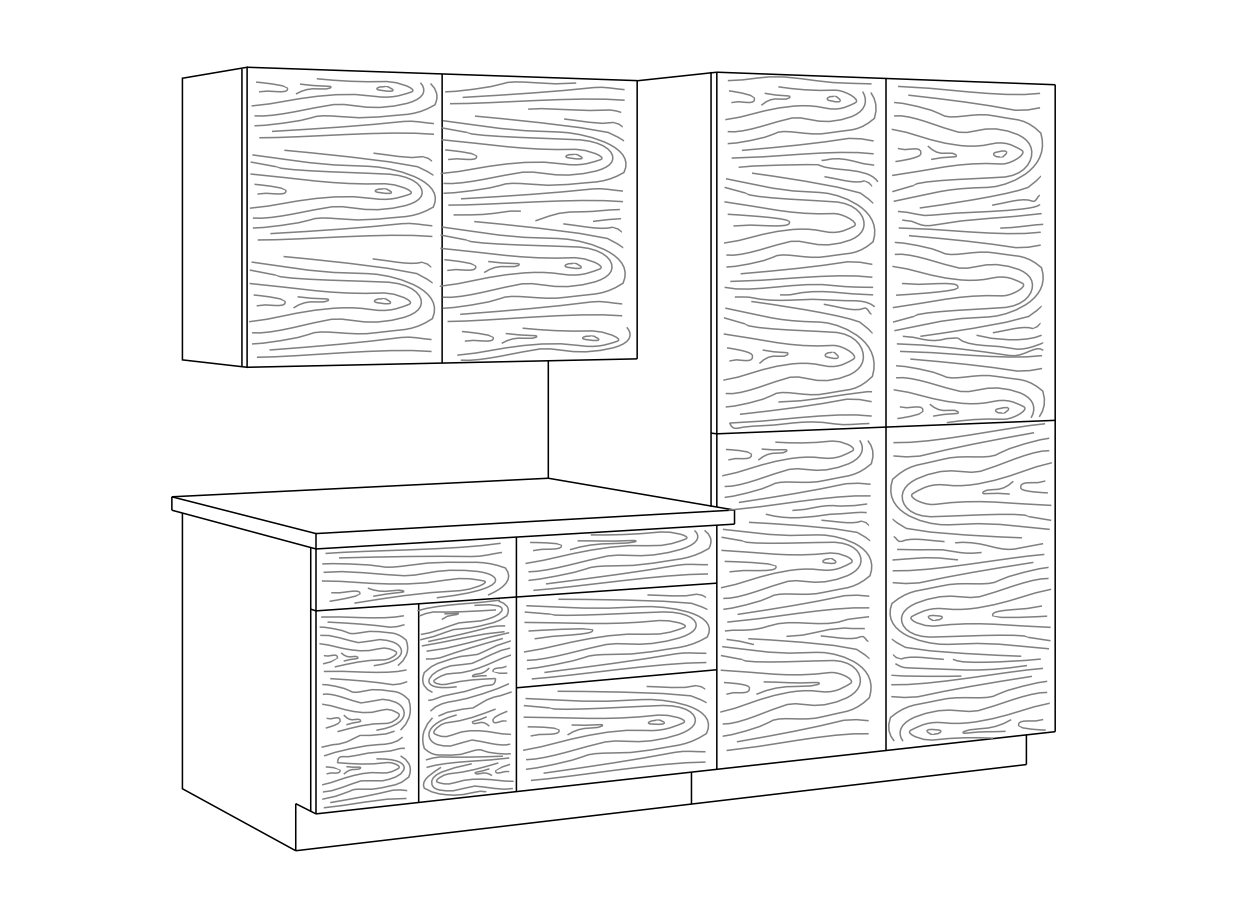

Standard Cut- Horizontal (SCH)

Cutting Approach: Random from Sheet
Grain Direction:
Doors- Vertical
DFs- Horizontal
How to Order (Tape)- #481-SCH and #981-SCH
How to Order (3mm)- #491-SCH and #991-SCH

How Choice Cut Works

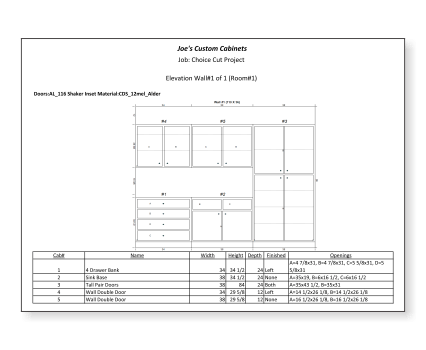

1. You send us your project elevations...

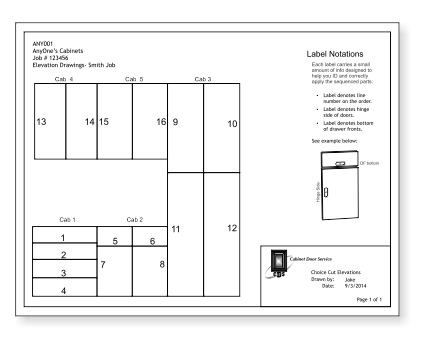

2. We develop a project map and cutting plan to achieve what you have ordered.

This plan will be emailed to you and delivered with your order, identifying every part with a label, position and orientation on the elevation.

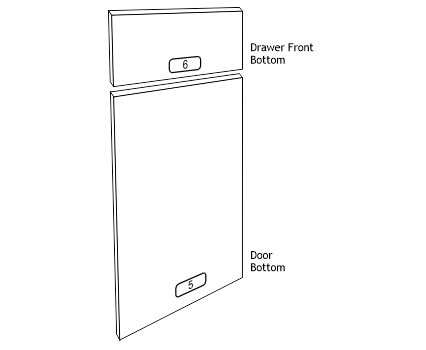

3. Every part cut from the plan will receive a label on the back of the part illustrating the following:
Each label will denote our line number on the order and the item number on the map
Each label will be positioned on the bottom of each part .
